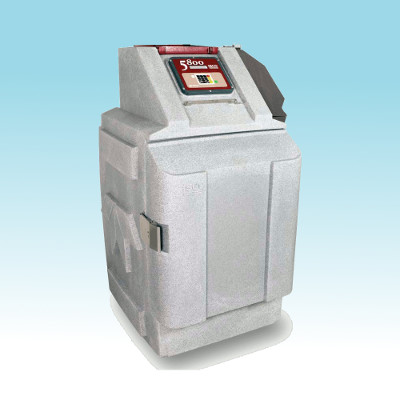

Sequential/Composite Water Sampler [5800]

The 5800 Refrigerated Sampler is Teledyne Isco's answer to the rigorous demands of water monitoring. With user-friendly controls and task accommodating features, the 5800 is the only choice for stationary sampling in both municipal and industrial wastewater applications.

The controller actively regulates and displays the sample compartment temperature, and logs a 24-hour summary to confirm proper sample cooling. Not only can you download the temperature record with a basic utility program such as Tera Term, you can also view this information on the unit display.

Isco-tough - and environmentally friendly, too. The 5800 Sampler follows the Isco standard for weather and corrosion resistance. The tough, double-wall LLDPE cabinet shrugs off exposure to weather and harsh environments. It is filled from top to bottom with insulation for efficient temperature control for keeping samples cool in hot, humid conditions and has heaters to keep the samples from freezing in cold conditions.



Heat-treated polyester powder coating protects the refrigeration system, additionally evaporator and condenser coils are constructed of 316 stainless steel. This ensures long life and reliability in corrosive treatment plant conditions.



Standard Features

• Composite or sequential sampling
• Operating range of -20 to 120°F (-29 to 49°C) - without additional heaters
• Four digital alarm outputs
• 4-20 mA and DC pulse flow meter input
• Powerful compressor delivers energy-efficient, high-performance cooling
• Four stored programs
• Lifting handles for easy installation



Specification

Size (HxWxD)	52 x 29 x 33 in (132 x 74 x 84 cm)
Weight (empty)	195 lb (88.5 kg)
Refrigerator body	Linear low-density polyethylene
​Power Requirements	115VAC, 60 Hz, or 230 VAC, 50 Hz
​Pump ​
​Intake Purge	​Adjustable air purge before and after each sample
​Tubing Life Indicator	Provides a warning to change pump tubing
​Intake Suction Tubing	​Vinyl or Teflon®; 1 cm (3/8") ID; 1 to 30 m (3 to 99 ft) length
​Pump Tubing Life	​Typically 1,000,000 pump counts
​Maximum Lift	​8.5 m (28 ft)
​Repeatability	±5 ml or ±5% of the average volume in a set, whichever is greater, at lifts up to 25 ft
​Typical Line Velocity at Head Height	​0.9 m/s at 0.9 m (3.0 fps at 3 ft); 0.9 m/s at 3.0 m (2.9 fps at 10 ft); 0.8 m/s at 4.6 m (2.7 fps at 15 ft)
​Liquid Presence Detector	​Non-wetted, non-conductive sensor detects when liquid sample reaches the pump to automatically compensate for changes in head heights
Controller ​
​Enclosure Rating	​NEMA 4X, 6 IP67
​Program Memory	​Non-volatile ROM
​Flow Meter Signal Input	5 to 15 volt DC pulse or 25 ms isolated contact closure for Isco flow meters. 4-20 mA input for non-Isco flow meters
Digital alarms	4 programmable outputs; 5V, 100 mA
Number of composite samples	Programmable from 1 to 999 samples
