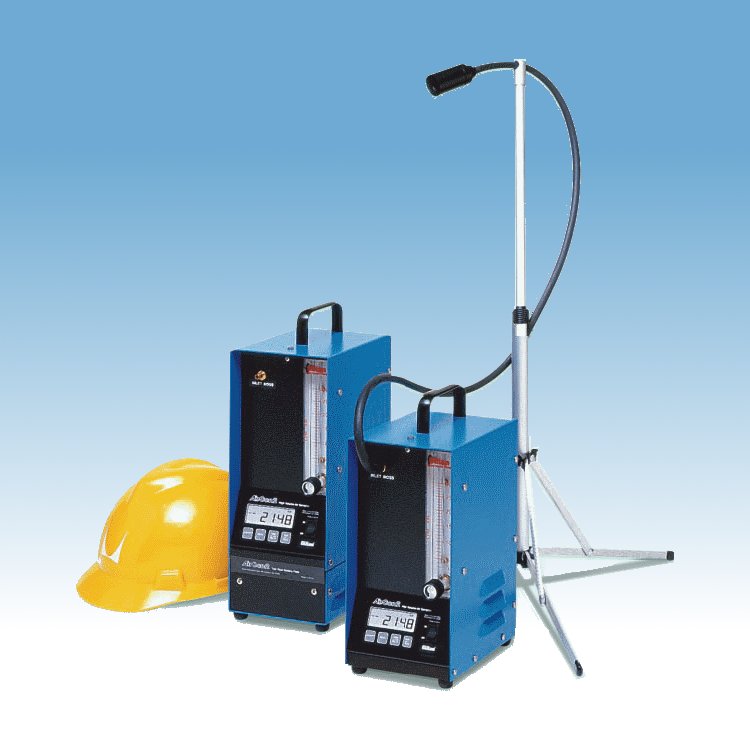

High Flow Air Sampling Pump [AirCon-2]

The AirCon-2 sampler is a high volume unit with an extended flow range, designed for collecting particulate in a given plant area. It is ideal for asbestos background and clearance sampling following NIOSH, OSHA or EPA methodology and for ambient dust monitoring. The AirCon-2 System is available in a programmable version that operates off either AC or battery power. It comes with an adjustable tripod mast and connecting hose to hold the filter cassette at the proper height and isolate the filter from the vibration of the unit. Cassette and filter media must be ordered separately.

Programmable AirCon-2 Sampler

The touchpad and LCD display on the front of this DC powered unit allows the user to program as many as three custom timing routines for unattended sampling. The program feature can be used to control starts and stops to the sampling run, as well as delays, holds and number of cycles. Programmable units include an instant fault function that terminates the sampling run and locks in the time when the unit is operated out of its performance envelope. A flashing word "FAULT"appears on the display to alert the operator. Back-pressure load on the unit can be checked through the LCD display at any time by simply pressing a button on the front control panel.



Extended Flow Range

2-30 LPM flow range designed for collecting particulates in a given plant area.



Fully Programmable

Can be programmed with up to three custom timing routines for unattended sampling up to 99 hours.



Touchpad & LCD Display

Allows easy programming of sampling starts and stops, delays, holds, and number of cycles.



Instant Fault Function

When in fault mode unit stops sampling run and locks in time. “FAULT” appears on display to alert operator.



Instant Pressure Check

Back pressure load can be checked on LCD display by pressing a single button.



Specification:

Flow range	2-30 LPM
Constant Flow	2-30 LPM @ pressures up to 7 psi
Run Time	8 hours minimum
Display	Electronic Pressure Display, Full-Function Timing Program, Instant-Fault Function, Programmable Memory (up to 3 custom programs)
Indicators	LCD Display, External Rotameter, Instant Fault, Low Battery
Icon (LCD)	Elapsed Time (DC model only)
Power	14 VDC @ 4.6 A (51 watts)
Charging Time	14 hours (operational), 8 hours (non-operational)
Dimension	10.8W x 26.0H x 19.1D cm
Weight	主机位：12磅（5.4公斤）， 4小时电池组：11.5磅（5.2千克） 电源模式：2磅（0.9公斤）
APPROVAL	CSA, CE EMC Directive [EMI/RFI], ATEX
