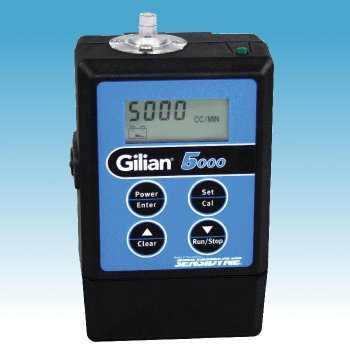

Air Sampling Pump [5000]

The Gilian 5000 is a high-performing personal air sampling pump leading the industry in back-pressure performance, reliability and ease-of-use. The pump offer flow rates up to 5000 cc/min, and thanks to several advanced features, the pump overcome the main causes of sampling errors, saving you time and money. The air flow display holds calibration for 30 days, even with atmospheric changes. The back-pressure capabilities of the Gilian 5000 are the highest in the industry for any personal sampling pump.



NiMH Memory-Free Battery

NiMH battery ends memory problems associated with NiCad batteries. Quick-charge time in under 4 hours.



Programmable Functionality

• Four stage program with repeat cycling
• Allows scheduled sampling or intermittent duty cycles
• Programmable delayed start



EN 1232 Compliant

Meets European EN 1232 requirements for personalized sampling pump performance in workplace environments.



Intuitive Operation with Lock-out Feature

Simple four-button design makes pump easier to understand and operate.



30-Day Calibration

Special flow control circuitry automatically compensates for changes in flow rate, pressure and temperature.



Live Flow Display

Large display continuously shows real-time flow, total sample time and total volume sampled.



Intrinsically Safe Certified

Certified Intrinsically Safe for use in explosive environments.



Specification:

Flow range	20-5000 cc/min (Total*), 800 - 5000 cc/min (High Flow); 20-800 cc/min (Low Flow*) *with low flow constant pressure adapter
Flow control	± 5% of set flow at 1000-5000 cc/min
Flow Compensation	5000cc up to 24” H2O back pressure 4000cc up to 30” H2O back pressure 3000cc up to 50” H2O back pressure 2000cc up to 60” H2O back pressure 1000cc up to 70” H2O back pressure
Run Time	8 hours minimum
Flow Fault	If flow changes exceed 5%, fault icon appears. If fault exceeds 30 seconds, pump shuts down. Pump attempts to restart every 3 minutes for up to 1 hour
Display Messages	Flow Rate, Total Sample Time, Total Volume Sampled
Indicators	Green LED (“Normal Operation”)
Icon (LCD)	Battery Indicator, Hold, Fault, Set, Prog
Power	Battery pack: Rechargeable NiMH Charge time: Under 4 hours
Dimension	8.2W x 13.7H x 5.8D cm
Weight	580g
APPROVAL	EN 1232, Intrinsic Safety – US/Canada NRTL (FM), ATEX, CE
