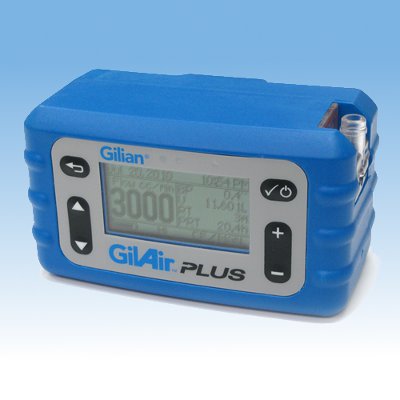

Air Sampling Pump [GilAir Plus]

The GilAir® Plus features wide dynamic flow and pressure ranges to address all personal air sampling methods with flow ranges between 20 and 5,000 cc/min. With patent pending QuadMode^SM air sampling technology, the GilAir Plus can perform both high-flow constant pressure and constant flow (450-5,000 cc/min) and low-flow constant pressure and constant flow (20-499 cc/min) with a single pump without external adaptors. It's like getting two pumps in one.



Motion Detection

Detect and measure up to 3 levels of activity (active, stationary, inactive) of each worker, ensuring sample integrity



Bluetooth Connectivity

• Remotely monitor an air sampling pump up to 5 meters away, No disturbance of the worker, Stay in unrestricted areas while workers are in restricted areas, No need to suit up



CONNECT Mobile App

• Start, stop or pause the sample remotely
• Monitor and graph flow rate, sample run time, and volume remotely
• Perform real-time remote assessments:
  • Identify if cassette is overloading and if filter media is detached
• Sample audits provide the following right on the smart phone/tablet:
  • Report of current conditions, screen shot of current conditions, time stamp, GPS coordinates (actual address), pump number, E-mailable report, check the status of multiple pumps in the same area.



QuadMode^SM Air Sampling Technology

High-flow constant pressure and constant flow and low-flow constant pressure and constant flow without external adapters



Selectable Automatic Fault Recovery

Pump automatically attempts restart to recover from temporary fault conditions



Temperature & Pressure Compensation

Pump operates in selectable ambient or standard mode correcting for temperature and barometric pressure when equipped with STP option



Superior Design & Comfort

One-third smaller than traditional personal air sampling pumps, light-weight, quiet, with a large backlit display



Real-time Clock with Data-logging

An optional computer interface for uploading program information or downloading timestamped data-logs through the docking station



Specification:

Flow range	Constant flow 20 - 5,000 cc/min. without external adaptors. Constant pressure 1 - 5,000 cc/min without external adaptors
Flow Modes	Constant Flow or High and Low Flow Constant Pressure
Accuracy	Flow Display: ± 5% or 3 cc/min of set flow, whichever is larger. Constant Flow Control: ± 5% or 3 cc/min of set flow, whichever is larger. Constant Pressure Control: ± 10% of back-pressure
Back Pressure Capability (8-hour runtime)	5000 cc/min. up to 12” H2O back pressure 4000 cc/min. up to 20” H2O back pressure 3000 cc/min. up to 30” H2O back pressure 2000 cc/min. up to 30” H2O back pressure 1000 cc/min. up to 35” H2O back pressure 450 - 1000 cc/min. up to 40” H2O back pressure 20 - 449 cc/min. up to 25” H2O back pressure
Run Time	8 hours minimum
Flow Fault	If flow changes exceed 5% within back pressure specifications, fault notification appears. If fault exceeds 30 seconds, pump shuts down. Selectable automatic fault recovery allows the pump to attempt restart every 3 minutes for up to 10 times or to hold until manual intervention.
Display Messages	Flow rate, sample time, and sample volume in actual conditions.
Indicators	Green and Red LED’s
Power	Removable rechargeable nickel-metal hydride (NiMH) battery pack, optional alkaline battery pack, or DC power Charge time: Under 3.5 hours
Dimension	10.9 x 6.1 x 6.1 cm
Weight	581g
Approvals	EN 1232, Instrinsic Safety: US/Canada NRTL (FM), ATEX, CE
